Turbojet Fluid Bed Granulating Machine

Turbojet Fluid Bed Granulating Machine

Working Principle of the Turbojet Fluid Bed Granulating Machine
The turbojet fluid bed granulating machine is designed with a special circular shaped blade to function as air distributor. The blade allows the air flow to pass through the incisions of the blade, thus forming into a cycling high speed air flow. The air cycling flow allows powder materials to rotate in turbojet movement.

Meanwhile, the granulating machine has a pneumatic nozzle to spray binder or coating liquid onto the powders. In this way, the powder materials are made into granulates.

Granulator Applications
The turbojet fluid bed granulating machine is widely used in granulating powdered material, enteric coating, slow-release control film coating, and other coating for powder, granule, or pellet material. Some of the granulating machine uses include lysine granulating, granulating and coating for phytase crude, enteric coating of kitasamycin, herbicide granulating, herbal extract granulating, citric acid separation coating, and more.

Features of Turbojet Fluid Bed Granulating Machine
1. The granulating machine has a specialized air distributor to make material move regularly, and solve the channel flow and dead angle issues also.
2. The granules produced by this granulation equipment are porous and firm.
3. The granulator is also ideal for materials with high hygroscopicity and bad liquidity.

Technical Parameters of the Granulating Machine
Item Specification
Name Unit 3 5 10 15 30 60 90 120 200 300 500
Capacity Kg/batch 3 5 10 15 30 60 90 120 200 300 500
Power of fan kW 3 4 5.5 7.5 11 15 18.5 18.5 22 30 55
Compressed air consumption m3/min 0.25 0.35 0.55 0.6 0.85 1.1 1.1 1.3 1.8 2.4 3
Steam consumption Kg/h 36 40 50 70 95 145 165 180 340 380 450

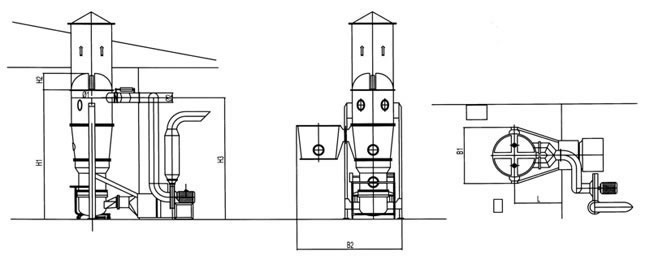

Size of main machine H1(mm) 1950 2260 2400 2500 2500 3050 3050 3050 3450 3650 4000
H2(mm) 250 250 250 320 340 490 540 590 680 790 890
H3(mm) 1750 2030 2100 2200 2200 2750 2750 2750 3150 3350 3700
φ1 400 550 550 650 700 1000 1100 1200 1400 1600 1800
φ2 150 180 180 250 250 280 280 280 280 315 355
B1(mm) 660 1050 1010 1110 1160 1460 1560 1660 1860 2030 2260
B2(mm) 1200 1650 1560 1760 1830 2460 2660 2860 3260 3660 4060
B3(mm) 880 950 1100 1100 1250 1530 1530 1650 1650 1750 1850

Typical customer
Ukraine Aksi Company
Cty Co Phan Long Hiep ( Vietnam)
