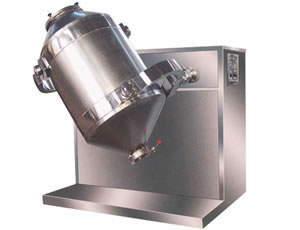

3-Dimensional Motion Mixer

3-Dimensional Motion Mixer

Features
The 3-dimensional motion mixer is a high efficiency mixer, widely used in the pharmaceutical, foodstuff, and chemical industries, for mixing powder/granule materials. It does not use centrifugal action, thus avoids any layering or agglomeration during mixing. It is able to reach a uniform mixing effect, with a mixing rate above 99%. With a high load factor of 80%, while that of normal mixer's is 40%, the 3-dimensional motion mixer is an ideal model for mixing, with a short mixing time. It offers a compact structure, and the stepless speed regulating transmission (adjusts speed by inverter or electromagnet), makes its operation very convenient. Each part of the chamber has an ARC transition and is polished precisely, and thus meets the GMP requirements.

Working principle of the 3-Dimensional Motion Mixer
The 3-dimensional motion mixer mixing barrel is suspend, fixed on the ends of driving and driven axles through two Y type gimbals, which is crossing and vertical to each other space. When the driving axle is forced to rotate, the gimbals make the barrel perform the translational, turning and rolling movement in space. This causes the materials to perform 3-dimensional motion inside the barrel. Thus, the three-dimensional motion mixer mixing barrel causes different kinds of materials inside the barrel to flow, spread, and intermingle with each other and finally form a new, uniform material.

Technical Parameter of the 3-Dimensional Motion Mixer
Specification 15 50 100 200 400 600 800 1000 1200 1500
Barrel volume(L) 15 50 100 200 400 600 800 1000 1200 1500
Load volume(L) 12 40 80 160 320 480 640 800 960 1200
Max load weight(kg) 6 20 40 80 160 240 320 400 480 600
Rotate speed(r/min) 0-28 0-8
Motor power(kW) 0.37 1.1 1.5 2.2 4 5.5 7.5 7.5 11 11
Overall Size (mm) L 750 1400 1700 1800 2100 2400 2600 2650 2950 3100
W1 1000 1000 1200 1400 1800 2200 2380 2500 2650 2850
H 700 1200 1500 1600 1950 2350 2500 2600 2750 3000
W2 650 850 1250 1350 1650 1750 2000 2100 2200 2250
Total weight(kg) 200 300 500 800 1200 1500 2000 2500 3000 3500

We are a 3-dimensional motion mixer manufacturer based in China. We provide a vast range of products, including V model mixer, belt drying equipment, circle vibrate sieve, fine grinding machine, and others.
